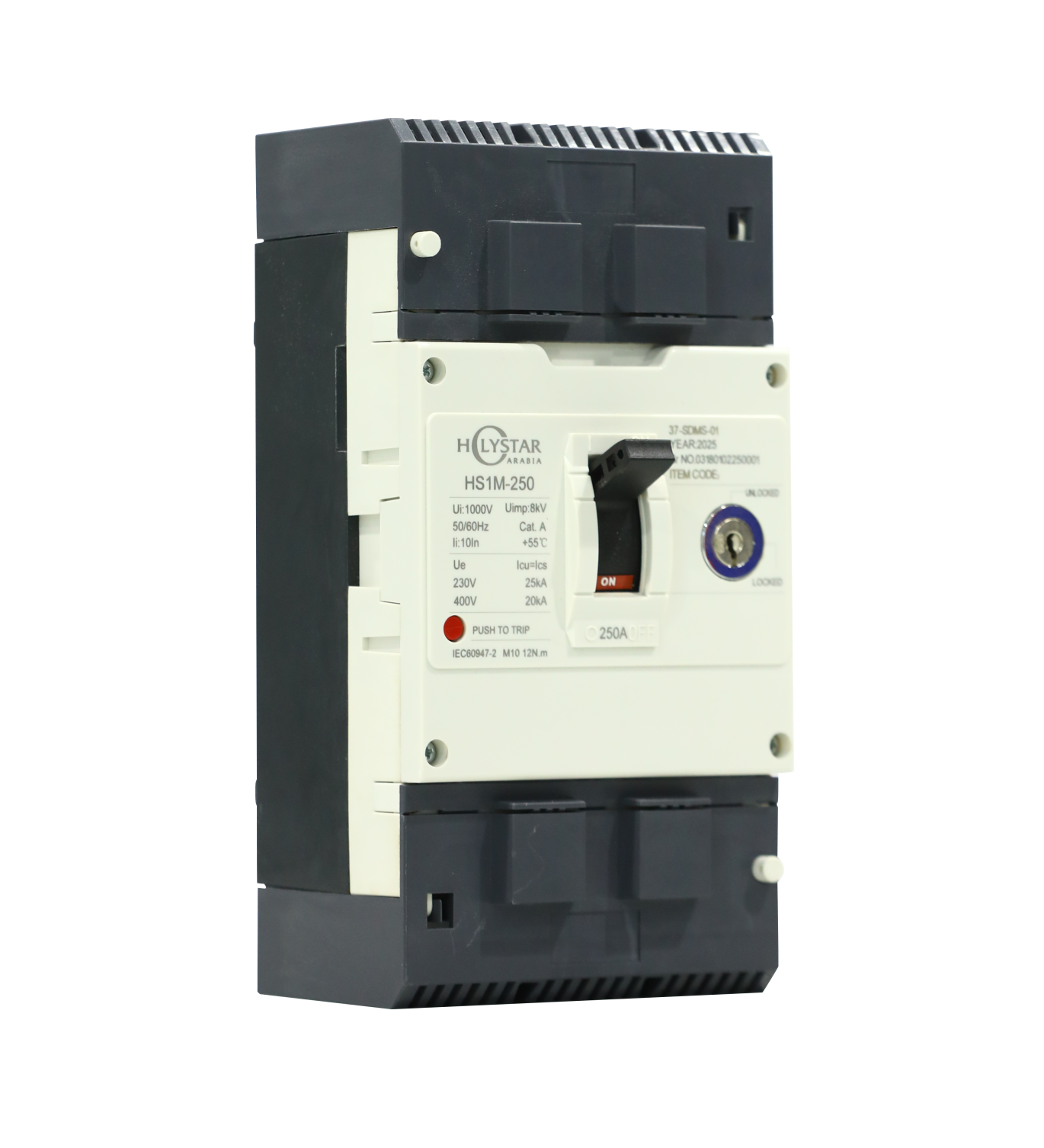

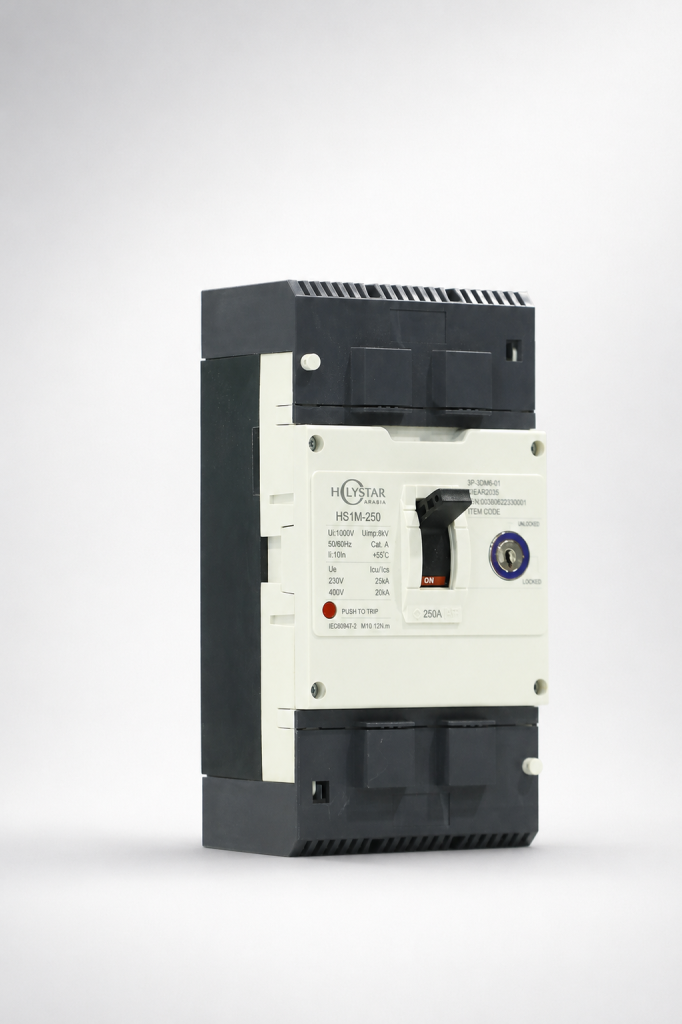

LV Molded Case CB (MCCB)

The HS1 series low voltage molded circuit breaker is designed to operate on 50/60Hz AC, with a rated insulation voltage of 1000V, operating voltage AC400V/230V, and current capacity from 20a to 600A. The breaker provides reliable protection for electrical power distribution and protection of engines. The HS1E is also intended for use in measuring boxes since it can interact with the meter and receive commands, such as query and control. Therefore, the HS1M is a generic version for multiple uses.

Contact us

Key Features

  • The breaker is used for infrequent circuit switching and starting of motors, with protection from overload, electrical shorting, and insulation.
  • It is equipped with a key lock (anti-lock) and end cap at the entry and exit points, which enhances safety and achieves an IP30 protection rating.
  • Reference temperature of up to 55°C with withstand voltage shocks of up to 8kV and easy wiring options.
  • Thermo-magnetic design with high cutting capacity and advanced features, such as:
    ● Easily adjustable interior accessories.
    ● AD Arc Drive technology to prevent electrical sparks.
    ● A uniform size for 630A and 400A circuit breakers
    ● Increase cutting capacity per unit volume.
    ● Raise insulation voltage to Ui=1000V.

Uses and Applications

Commercial Buildings
Urban & Industrial Networks
Power Distribution Systems
Renewable Energy Systems

Why HS1M?

Licensed & Insured
Reliable Protection: Protects against overload, short circuits, and insulation failures with high thermal and voltage tolerance.
Smart Integration: Compatible with meter boxes and remote control systems for modern, connected applications.
Advanced Safety: Equipped with anti-spark Arc Drive technology, key lock, and IP30-rated safety features.
Versatile & Durable: Handles harsh environments with seismic resistance, high humidity tolerance, and operation up to 75°C.
