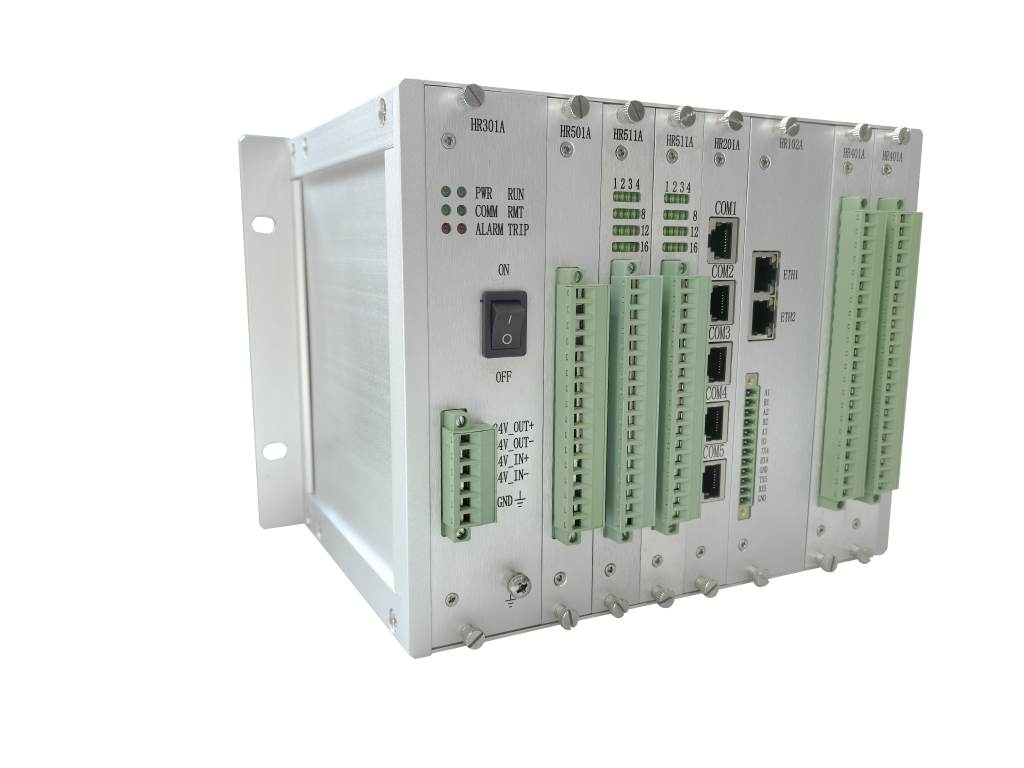

Remote Terminal Unit

The HSD-860X is an innovative smart distribution network

automation device, which combines protection and connectivity functions in one device. This device is characterized by its reliance on a high-efficiency SOC platform and a dual-core processor to deliver high performance and exceptional eliability.

It collects and analyzes data from smart meters and sensors, then sends this data to control centers to improve the decision-making process and increase operational efficiency.

Contact us
Get a Quote

Key Features

  • High stability: The device is based on a dual-core ARM processor, ensuring strong reliability and superior performance in various working environments.
  • Intelligent monitoring and analysis: It collects and analyzes data from smart meters and sensors in real-time, which enhances the ability of control centers to make quick and effective decisions.
  • Flexibility in communication: It supports many communication protocols, such as IEC 60870-101, Modbus, etc., which enhances its compatibility with different systems.Flexibility in communication: It supports many communication protocols, such as IEC 60870-101, Modbus, etc., which enhances its compatibility with different systems.
  • Easy integration: It allows the system to expand flexibly to meet the needs of the future without the need for radical infrastructure modifications.

Uses and Applications

Smart Grid
Urban & Industrial Networks
Power Plants & Transmission Systems

Why HS1 breakers?

Licensed & Insured
System architecture modularization: Adopting 4U standard chassis, distributed modular front-pluggable board design mode, can be flexibly combined and configured according to the use of scenarios.
Rich communication interfaces: It supports up to 3 Ethernet ports and 4 serial communication interfaces, which improves the flexibility and adaptability of the device and greatly expands its application scenarios..
Multi-protocol library design Support IEC60870-5-101, IEC60870-5-103, IEC60870-5-104, IEC 61850, DNP 3.0 via serial and TCP/IP, Modbus and other protocols, can be flexibly configured according to the needs.
Comprehensive fault waveform recording Support high sampling rate waveform recording function, 64 groups of fault waveform recording cycle storage, 4 groups of energy storage waveform recording and 8 groups of opening closing action waveform recording cycle storage.

Get a Quote​

Out Team Will Contact You As Soon As Possible

FAQ RTU

A Remote Terminal Unit (RTU) is an industrial monitoring and control device used to collect data from field equipment and transmit it to a central system. It enables utilities and industrial operators to remotely monitor assets, receive alarms, and control connected devices.

An RTU receives data from connected sensors and equipment, processes the information, and communicates it to systems such as SCADA. It can also receive remote commands from the control center and execute actions through connected field devices.



An RTU is typically designed for remote monitoring, wide-area communication, and operation in demanding field environments. A Programmable Logic Controller (PLC) is commonly used for high-speed local automation and machine control. The right choice depends on the application, communication requirements, and operating environment.

Key factors include the number and type of inputs and outputs, supported communication protocols, cybersecurity features, processing capacity, power supply, environmental conditions, data storage, remote configuration, and compatibility with the existing SCADA or automation system.

The price of an RTU depends on its input and output capacity, communication protocols, cybersecurity and automation features, environmental rating, accessories, and project requirements. Contact Holystar Arabia for a customized quotation based on your required configuration.
